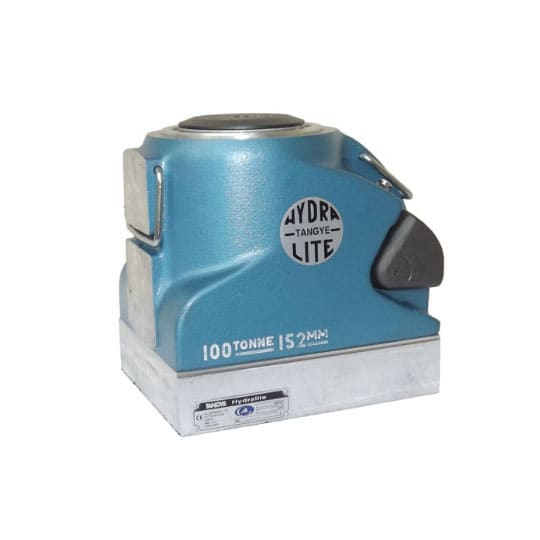

100 tonne Hydralite Jack | Hydraulic Jack
Capable of lifting 100 tonne | Hydraulic Jack
100 tonne Hydralite Jack | Hydraulic Jack
The 100 tonne Hydralite is powered by two internal pumps, the low pressure, fast- speed plunger moves the ram out quickly, up to a load of about 8 tonnes on the ram, before transfer to the high pressure plunger becomes necessary. The lift of the ram per stroke of lever is 1.1mm on low pressure and 0.1mm on high pressure.
The 100 tonne Hydralite jack has the following features:
- Versatile – Different stroke options, screwed ram or plain ram
- Minimum Operator Effort – Full capacity is achievable with one operator. The short lever is lightweight and requires little space for operation
- Load Sustaining – Jacks with a screwed ram and load retaining ring should be selected when loads are to be sustained for a significant time
- Easy Operation – The operating lever can be fitted in any one of the three positions in the quadrant to obtain the most suitable operating height
- Reliable – All moving parts are totally enclosed and lubricated by the hydraulic oil. Seals are highly resistant to deterioration under widely varying climatic conditions
- Easy to Maintain – The Hydralite jack’s design makes inspection and component replacement uncomplicated. Refer to service instructions for guidance
Ram Options
P6100 Plain ram
P6100S Screwed ram
