The WCOS38D is a double acting tool primarily intended for use on steel wire rope, having a maximum tensile strength of 1770N/mm and will cut ropes up to 38mm diameter. It may be used on alternative materials, such as electrical power or communication cables, again up to a maximum of 38mm diameter.
Features and Benefits of the WCOS38D
- Heavy duty wire rope cutter designed for use in severe working conditions
- Open sided design allows for easy positioning of the cutter on the cable
- Corrosion resistant stainless steel construction. Long blade life ensures that tool maintenance is kept to a minimum
- Ideal for operation in confined spaces
- Optional intensifier panel is available
Technical Details
- Cutting capacity – Maximum Ø38mm wire rope of 1770N/mm² grade
- Can be used at any water depth
- Suitable for cutting wire rope, cables and umbilicals.
- 700 bar maximum input pressure
- Approx weight – 15.5kg

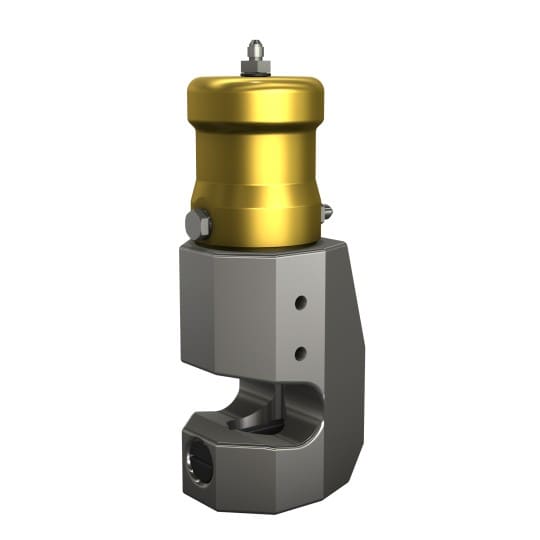

Standard tool is shown above. Bespoke and custom designs to suit special applications are available on request.
